The White Box of 3D Programming

About

SmallWorld3D is an educational realtime 3DCG library. Entire system including polygon rasterizer is written in short javascript.

Download

Getting Started

Step 1: Create framebuffer and rasterizer.

	framebuffer = new smallworld3d.ImageBuffer(300, 300, true);
	rasterizer = new smallworld3d.Rasterizer(framebuffer);
	rasterizer.enableZTest = false;

Step 2: Draw a polygon.

	rasterizer.setVertexAttribute(0,
			10, 10, 0, 1,
			255, 0, 0, 255);

	rasterizer.setVertexAttribute(1,
			290, 20, 0, 1,
			0, 255, 0, 255);

	rasterizer.setVertexAttribute(2,
			80, 290, 0, 1,
			0, 0, 255, 255);

	rasterizer.fillTriangle();

Step 3: Output.

	framebuffer.emitToCanvas(g); // g is a 2d context of canvas

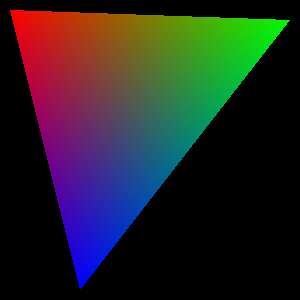

You'll get:

Demonstrations

Simple Polygon

Miku Model

SH PRT

Motion
